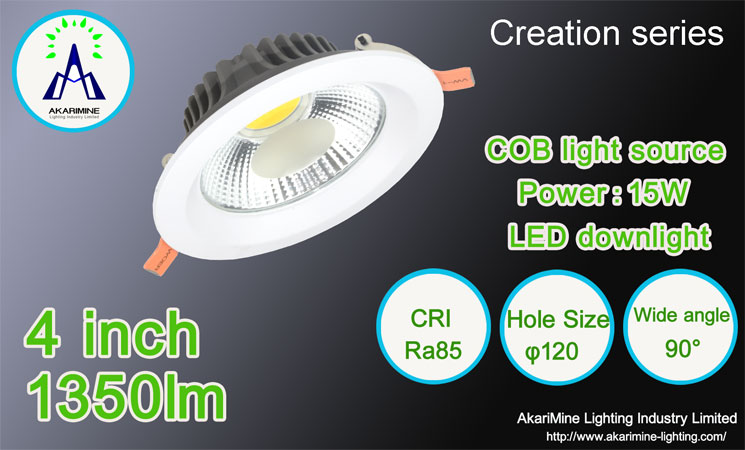

φ115-120 15W 1350lm AkariMine Lighting Industry Limited.

-------------------------------------------------------------------------------------------------------
◆External power source, electromagnetic wave interference countermeasure

-------------------------------------------------------------------------------------------------------

◆High color rendering index Ra85

-------------------------------------------------------------------------------------------------------

Product details

Catalogue

Instruction for use

Notes

Feature

Abundant choices!

There have a variety of sizes for preference, so our product can meet all kinds of requirements.

Solf light, the multiple shadow is reduced

The uniform luminescence surface reduces multiple shadow by using the COB light source, which creates a natural space.

PSE certified external power source, electromagnetic wave interference countermeasure

Using the safety external power source with PSE identification and following the international standard CISPR15,it can be confirmed that all positions are below the allowable value after the repeated tests of electromagnetic wave interference, No interference of electromagnetic wave to the surrounding machine. So it is very safe to use.

High color rendering index Ra85

The true color of product can be restored for its high color rendering index.

Reassuring warranty of 3 years

The warranty of product is 3 years.

Reducing environmental load

There is no doubt that our products do not contain harmful substances such as mercury. and it's always eco-friendly from the reduction of carbon dioxide caused by energy saving to the process of production and so on.

Parameters

Item	AM-D15X-N
Beam angle	About 90°
Luminous flux	1350lm±5%
Luminous flux efficiency	90lm/W±5%
Color temperature	5000K±500K
color rendering index(CRI)	Ra85±5
LED chip	COB light source
Power	15W±5%(including external power supply)
Input voltage	AC100-240V
Wave index	50Hz/60Hz
Power	External power supply
Weight	About 350g(including power supply)
Installation hole	Φ115-120mm
Body	Aluminum
Lampshade	Transparent reinforced glass
Width/installation height	φ134mm/52mm
Working temperature	-20 - +40℃
Preservation temperature	-20 - +40℃
Lifespan	40000H
Warranty	3 years

※Lifespan is the time before the initial luminous flux decays to 70%,and it is a average value,not guaranteed value.

※Please be noted because there is a deviation of the LED, so the light color and brightness may vary for each element.

※In order to improve the product,sometimes there will have a change in specification and appearance without notice,please note.

Warning

Product handling error, the degree of harm to death or serious injury.

■Please do not use the apparatus for lamp HID of stable secondary instruments and emergency lighting lamp, explosion-proof equipment, . it may lead to The lamp lighting circuit breakage, damage or smoke.

■Please do not use tit may lead to The lamp lighting circuit breakage, damage or smoke.

■Please do not cover product with paper or cloth and do not approach the tinder. it may lead to The instrument overheating or fire.

■When install or remove equipment, please make sure that the power supply is cut off.

■It is not available to use the light which concludes the light control function and the lighting circuit. it may lead to short life and emit problem .

Note

Product handling error, the degree of harm or damage to property damage is assumed to be or damage.

■ When it is used outdoors, please use the the waterproof structure instrument which is in set too. or it may lead to flood lamp, electric shock, and it is your fault.

■ Please do not drop, hit, or excessive force. Please take care when clean apparatus. it may casuse damage, injury from falling debris.

■ If there have smoke and odor, such as abnormal, please immediately stop using the power supply,if not,it may lead to fire and electric shock,

■ After turning off the lamp please do not touch it or it can burn your skin.

■ Please do not use in dangerous place which have combustible gas ,lacquer,dust,it may lead to fire and explosion.

■ Please do not use it in place which have Acid, humid food. it may lead to damage caused by Golden mouth rot, electricity leakage.

■ Please install the socket securely. or there may have a risk for the drop of the lamp.

■ Please consider Lamp size diameter, length and weight carefully,if it is not suitable for lamp，it may lead to a drop of it.

■ Multiple lamp bulb or lamp stand for heavy equipment, which may cause the fall of the instrument for its heavy weight.

■ Please do not use when crack occurs in front cover, it may lead to electric shock and error after a drop and water soaking.

■ Please do not paint it . it may lead to damage for Overheating and breakage of the lamp.

■ Please do not look the lamp for a long time. It may cause the pain and damage of eyes.

■ Don't use it in place which have risk of water flooding,it may lead to Electric leakage, electric shock and error.

Precautions on use

■ The rating life of lamp is 40000 hours or 8-10 years,internal parts may be damage but without any abnormal specifications,so if the rating time is exceed ,please exchange it .it can cause injury for the damage and dropping.

■Please do not use lamp in the following environmental conditions. it may cause fire, electric shock, and drop which can lead a damage to people.

Temperature is more than 40 degree during operation,place which have oil and drug.

High humidity place (exceeds 85 ),dustfull place.

Place which allways have vibration and shock and indoor swimming pool which chlorine institute is used.

Place which Corrosive gas, combustible gas can generate.

■ Please turn on lights in the temperature of -20 - 40 degrees.

■ The lamp can not be used in the following instruments. it may lead to fire, electric shock which may cause the short life of lamp.

Downlight
Sealed or instrument which is closed to seal.

appliance which's gap between Clearance lampand reflector is narrow.

(In addition, it may lead to the useless according to the type of equipment,size ,heat thermal and other conditions.

■ The maximum diameter portion of the LED lamp is inserted into the apparatus until there have a screw to stop.

■ please do not use DC power supply.

■ please use the AC supply voltage in the range of 100 to 240 V .

■ Light adjustment function and delayed light switch can't be used. cause it may lead to short life and emitting problem.

■ It can't exchange LED . The decomposition and please do not perform.

Attention on the safety

The following equipment is not allowed to use.

■ HID lighting fixtures which use stabilizer

■ Lighting device and light sensor lamp, circuit (with lighting function is 100% )cannot be used

■ Induction lamp, emergency lighting, explosion prevention apparatus

■ Down light type light

■ Heat insulating material and construction equipment

■ Closed or sealed instrument
