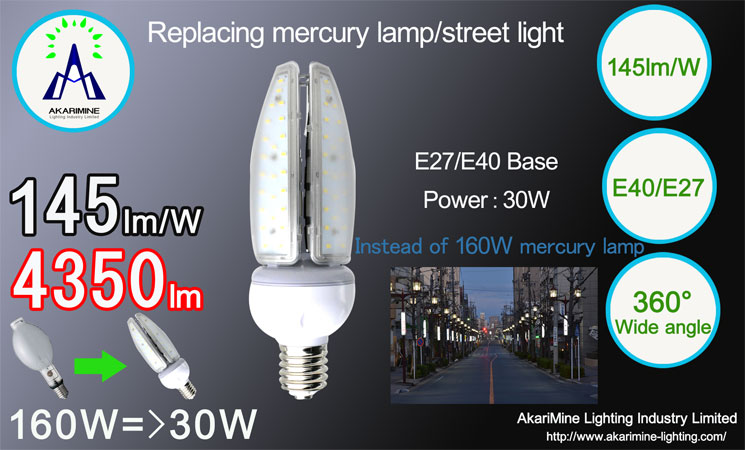

Aiming at the top of LED lighting

30W 4350LM E27 E40

30W 4350LM E27 E40

High luminous efficacy 145lm/W in the industry,energy saving more than 81% compared with traditional mercury lamp!

--------------------------------------------------------------------------------------------

Safety and reassuring lightweight design with 560g

--------------------------------------------------------------------------------------------

With 360°wide angle it can be used in many places

--------------------------------------------------------------------------------------------

Product details

Catalogue

Instruction for use

Notes


Feature

High luminous efficacy 145lm/W in the industry,energy saving more than 81% compared with traditional mercury lamp

Power is greatly controlled by using high brightness LED chip and optical design. Energy saving is more than 81% since the 160W mercury lamp was turned into 30W LED corn light.



Safety and reassuring lightweight design with 560g

After realizing 560g lightweight design with our special heat dissipation techniques, the burden of lighting is perfectly suppressed, it is also bright with good energy saving effect, so it is very safe to use.



With 360°wide angle it can be used in many places

With 360°wide angle of irradiation, so it can be used as garden light, warehouse light,street light and so on.



Heat dissipation and lifespan improved with low current driving design

The product is not only designed with cost saving consideration,but also with durability,driven by a current which is under the specified current,the problem of heat dissipation is successfully improved, so it is a long life lamp.



Reassuring warranty of 3 years

The warranty of product is 3 years.



It can be used without replacing appliance

It can be used in traditional E27/E40 Base, so it is unnecessary to replace the appliance.



Reducing environmental load

There is no doubt that our products do not contain harmful substances such as mercury. and it's always eco-friendly from the reduction of carbon dioxide caused by energy saving to the process of production and so on.





Parameters



 Item

                                    AM-F30W-N

 Beam angle

                                          360°

  Luminous flux

                               4350lm±5%

  Luminous flux efficiency

                            145lm/W±5%

  Color temperature

            5000K±500K(3000K 6000K is available too)

color rendering index(CRI)

                              Ra85±5

  LED chip

                          SMD(produced by LG)

Power

                  30W±5%(including power supply)

Input voltage

                                  AC100-240V

Wave index

                                 50Hz/60Hz

Power

                           Built-in power supply

              Size

          82*256mm(E27 Base) / 82*263mm(E40 Base)

Weight

                                   About 560g

Body

                                 Aluminum

Lampshade

                                 Polycarbonate

 Lamp holder

                                     E27/E40

   Working temperature

                                -20 - +40℃

Preservation temperature

                                  -20 - +40℃

Lifespan

                                     40000H

Warranty

                              3 years



※Lifespan is the time before the initial luminous flux decays to 70%,and it is a average value,not guaranteed value.

※Please be noted because there is a deviation of the LED, so the light color and brightness may vary for each element.

※In order to improve the product,sometimes there will have a change in specification and appearance without notice,please note.
