Top ＞ LED High Bay> GKL Series

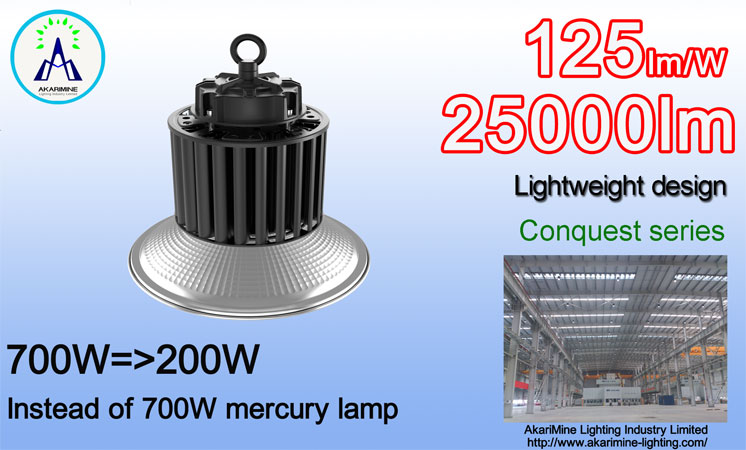

200W 25000lm 125lm/W

◆High luminous efficacy 125lm/W in the industry,70%~80% energy saving

-------------------------------------------------------------------------------------------------------

◆Compact ,lightweight design with 3.1kg

-------------------------------------------------------------------------------------------------------

◆Free lighting design can be realized by exchanging lens

-------------------------------------------------------------------------------------------------------

Product details

Catalogue

Instruction for use

Notes

Feature

High luminous efficacy 125lm/W in the industry,energy saving 70%ー80% compared with traditional mercury lamp！

Power is greatly controlled by using high brightness LED chip and optical design.

Compact ,lightweight design with 3.1kg

Realizing compact and lightweight design with our special heat dissipation techniques and high heat dissipation aluminum material.

Free lighting design can be realized by exchanging lens（Narrow angle25°/Medium angle 60°/Wide angle 100°）

The most suitable lens can be chose from 3 kind according to lighting height and lighting spacing.

Electromagnetic wave interference countermeasure

Follow the international standard CISPR15,it can be confirmed that all positions are below the allowable value after the repeated tests of electromagnetic wave interference,No interference of electromagnetic wave to the surrounding machine.

Strong current・ High voltage・ Short circuit defense function

The driver is set With Strong current・ High voltage・ short circuit protection circuit, Once the exception occurs, the protective device will be automatically started,After the exception, it will return to normal.

Parameters

Item	AM-GKL200W
Beam angle	25°/60°/100°
Luminous flux	25000lm±5%
Luminous flux efficiency	125lm/W±5%
Color temperature	5000K±500K
Color rendering index(CRI)	Ra75±5
LED chip	SMD LED
Power	200W±5%
Input voltage	AC100-240V
Wave index	50Hz/60Hz
Power supply	MEANWELL External power supply
Weight	About 3.1kg(including power supply)
Body	Aluminum
Lampshade	PC
Waterproof dust-free grade	Indoor use only
Working temperature	-20 - +50℃
Preservation temperature	-20 - +50℃
Lifespan	50000H
Warranty	3 years

※Lifespan is the time before the initial luminous flux decays to 70%,and it is a average value,not guaranteed value.

※Please be noted because there is a deviation of the LED, so the light color and brightness may vary for each element.

※In order to improve the product,sometimes there will have a change in specification and appearance without notice,please note.

Warning

Product handling error, the degree of harm to death or serious injury.

■Please do not use the apparatus for lamp HID of stable secondary instruments and emergency lighting lamp, explosion-proof equipment, . it may lead to The lamp lighting circuit breakage, damage or smoke.

■Please do not use tit may lead to The lamp lighting circuit breakage, damage or smoke.

■Please do not cover product with paper or cloth and do not approach the tinder. it may lead to The instrument overheating or fire.

■When install or remove equipment, please make sure that the power supply is cut off.

■It is not available to use the light which concludes the light control function and the lighting circuit. it may lead to short life and emit problem .

Note

Product handling error, the degree of harm or damage to property damage is assumed to be or damage.

■ When it is used outdoors, please use the the waterproof structure instrument which is in set too. or it may lead to flood lamp, electric shock, and it is your fault.

■ Please do not drop, hit, or excessive force. Please take care when clean apparatus. it may casuse damage, injury from falling debris.

■ If there have smoke and odor, such as abnormal, please immediately stop using the power supply,if not,it may lead to fire and electric shock,

■ After turning off the lamp please do not touch it or it can burn your skin.

■ Please do not use in dangerous place which have combustible gas ,lacquer,dust,it may lead to fire and explosion.

■ Please do not use it in place which have Acid, humid food. it may lead to damage caused by Golden mouth rot, electricity leakage.

■ Please install the socket securely. or there may have a risk for the drop of the lamp.

■ Please consider Lamp size diameter, length and weight carefully,if it is not suitable for lamp，it may lead to a drop of it.

■ Multiple lamp bulb or lamp stand for heavy equipment, which may cause the fall of the instrument for its heavy weight.

■ Please do not use when crack occurs in front cover, it may lead to electric shock and error after a drop and water soaking.

■ Please do not paint it . it may lead to damage for Overheating and breakage of the lamp.

■ Please do not look the lamp for a long time. It may cause the pain and damage of eyes.

■ Don't use it in place which have risk of water flooding,it may lead to Electric leakage, electric shock and error.

Precautions on use

■ The rating life of lamp is 40000 hours or 8-10 years,internal parts may be damage but without any abnormal specifications,so if the rating time is exceed ,please exchange it .it can cause injury for the damage and dropping.

■Please do not use lamp in the following environmental conditions. it may cause fire, electric shock, and drop which can lead a damage to people.

Temperature is more than 40 degree during operation,place which have oil and drug.

High humidity place (exceeds 85 ),dustfull place.

Place which allways have vibration and shock and indoor swimming pool which chlorine institute is used.

Place which Corrosive gas, combustible gas can generate.

■ Please turn on lights in the temperature of -20 - 40 degrees.

■ The lamp can not be used in the following instruments. it may lead to fire, electric shock which may cause the short life of lamp.

Downlight
Sealed or instrument which is closed to seal.

appliance which's gap between Clearance lampand reflector is narrow.

(In addition, it may lead to the useless according to the type of equipment,size ,heat thermal and other conditions.

■ The maximum diameter portion of the LED lamp is inserted into the apparatus until there have a screw to stop.

■ please do not use DC power supply.

■ please use the AC supply voltage in the range of 100 to 240 V .

■ Light adjustment function and delayed light switch can't be used. cause it may lead to short life and emitting problem.

■ It can't exchange LED . The decomposition and please do not perform.

Attention on the safety

The following equipment is not allowed to use.

■ HID lighting fixtures which use stabilizer

■ Lighting device and light sensor lamp, circuit (with lighting function is 100% )cannot be used

■ Induction lamp, emergency lighting, explosion prevention apparatus

■ Down light type light

■ Heat insulating material and construction equipment

■ Closed or sealed instrument
